CCTV Camera Overview
1. Definition & Purpose
-
CCTV (Closed-Circuit Television): A system for monitoring specific areas via video signals transmitted to a limited set of monitors, unlike broadcast TV.
-
Primary Use: Security surveillance, crime prevention, traffic monitoring, and safety compliance in both public and private spaces.
2. Key Components
-
Cameras: Capture video (analog or digital/IP).
-
Monitors: Display live or recorded footage.
-
Recorders: DVR (Digital Video Recorder) for analog systems, NVR (Network Video Recorder) for IP cameras.
-
Cables/Wireless: Coaxial, Ethernet, or Wi-Fi for data transmission.
3. Types of CCTV Cameras
-
Dome: Discreet, 360° coverage (common in retail).
-
Bullet: Long-range, visible deterrent (outdoor use).
-

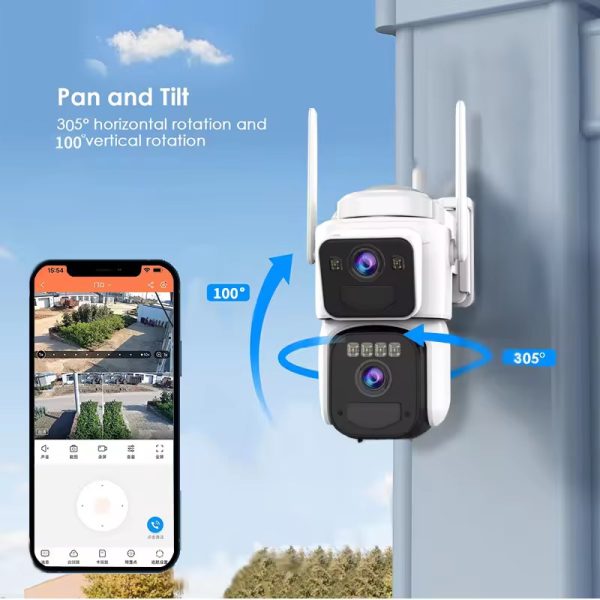

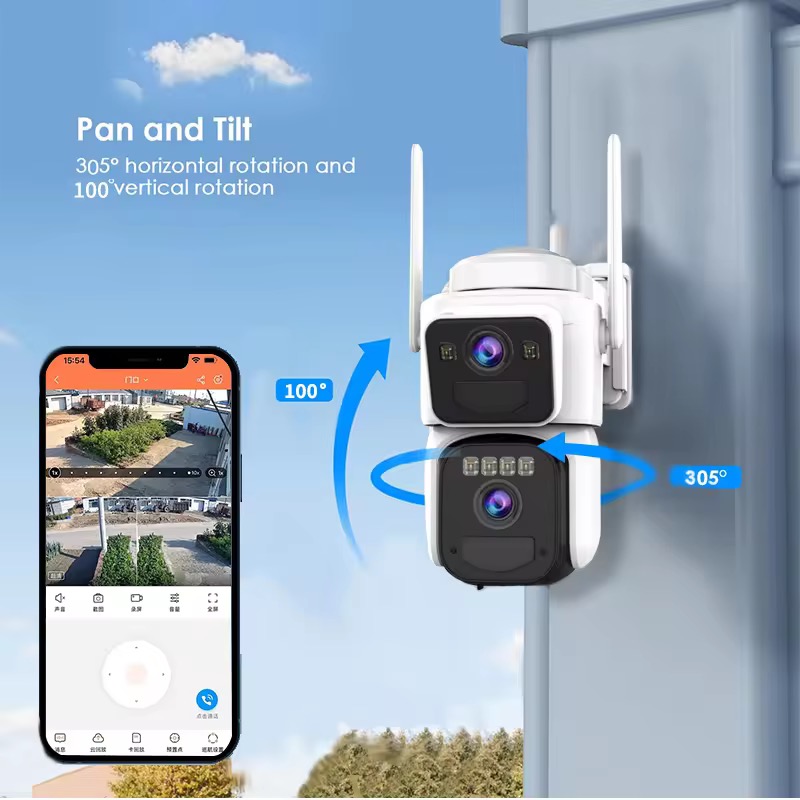

PTZ (Pan-Tilt-Zoom): Remote-controlled for tracking movement.
-
Hidden/Covert: Disguised for covert monitoring.
-
Thermal: Detects heat signatures (low-light areas).
-
Analog vs. IP: Analog is cost-effective; IP offers higher resolution and remote access.
4. Features to Consider
-
Resolution: HD (1080p), 4K for clarity.
-
Night Vision: Infrared (IR) LEDs for low-light visibility.
-
Motion Detection: Alerts and records only when movement is detected.
-
Remote Access: View via smartphones/apps (e.g., Hik-Connect, Arlo).
-

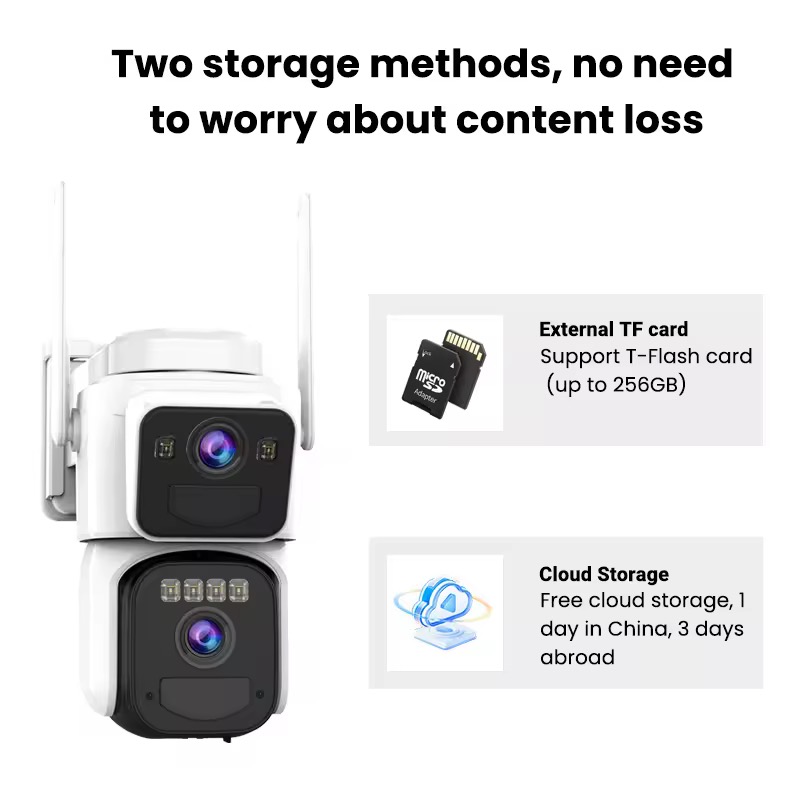

Storage: Local (DVR/NVR) vs. cloud options.
-

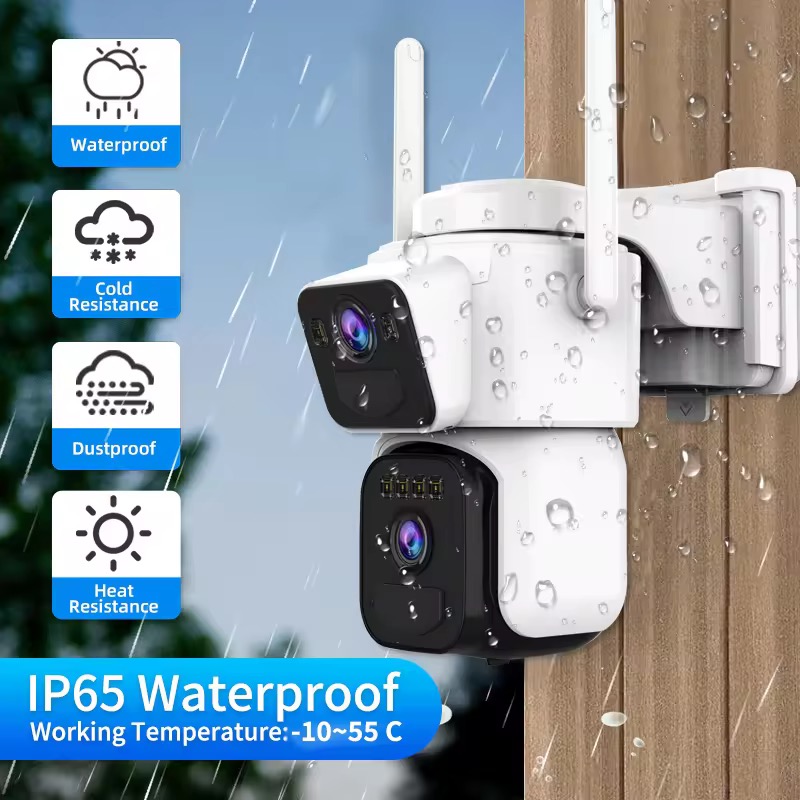

Weather Resistance: IP ratings (e.g., IP67 for outdoor use).
5. Applications
-
Retail: Prevent theft, monitor staff/customer behavior.
-
Transportation: Traffic management, license plate recognition.
-
Home Security: Monitor entrances, childcare, or pets.
-
Public Safety: Crowd control, emergency response.
6. Installation Tips
-
Placement: Cover entry points, blind spots, and high-traffic areas.
-
Power Supply: Wired (PoE for IP cameras) or battery-operated (wireless).
-
Legal Compliance: Post signage (required in many regions) and avoid private areas (e.g., bathrooms). Check local laws (e.g., GDPR in the EU).
7. Security & Privacy
-
Data Protection: Use encryption, strong passwords, and firmware updates to prevent hacking.
-
Ethical Use: Balance security needs with privacy rights; avoid unauthorized surveillance.
8. Popular Brands
-
Hikvision, Dahua: Budget-friendly, wide range.
-
Axis Communications: High-end enterprise solutions.
-
Arlo/Ring: Wireless, user-friendly for homes.
9. Future Trends
-
AI Integration: Facial recognition, anomaly detection.
-
Cloud Storage: Scalable, off-site backups.
-
5G & IoT: Faster connectivity for real-time monitoring.
10. Cost Considerations
-
Basic Systems: 100–300 (DIY kits).
-
Professional Setup: 500–2,000+ (multi-camera, advanced features)
