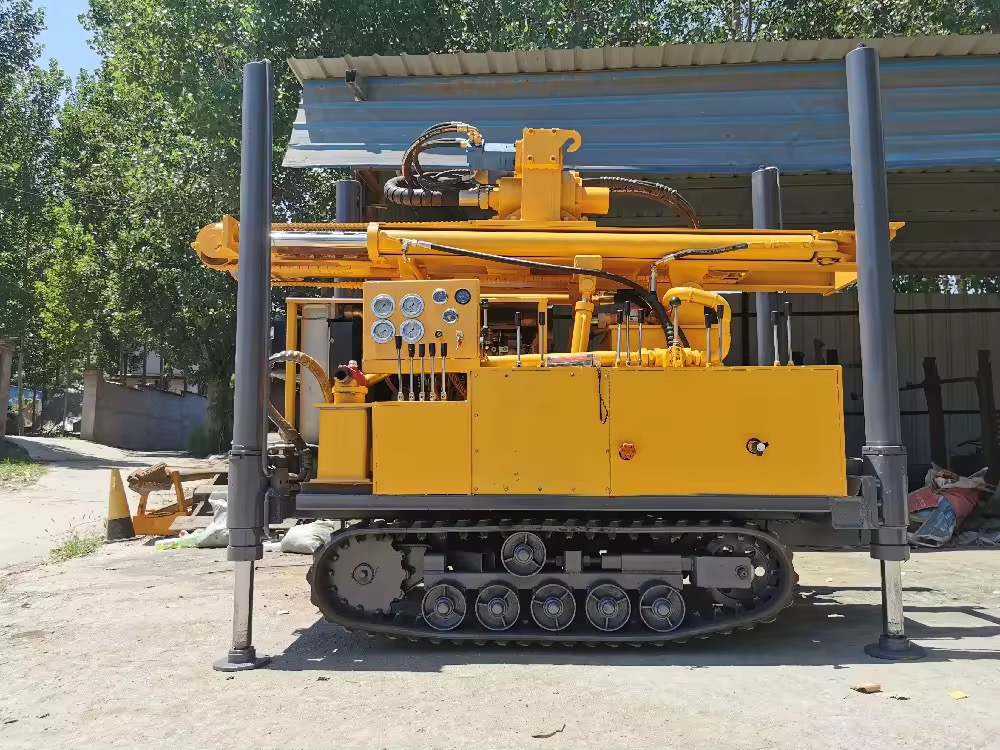

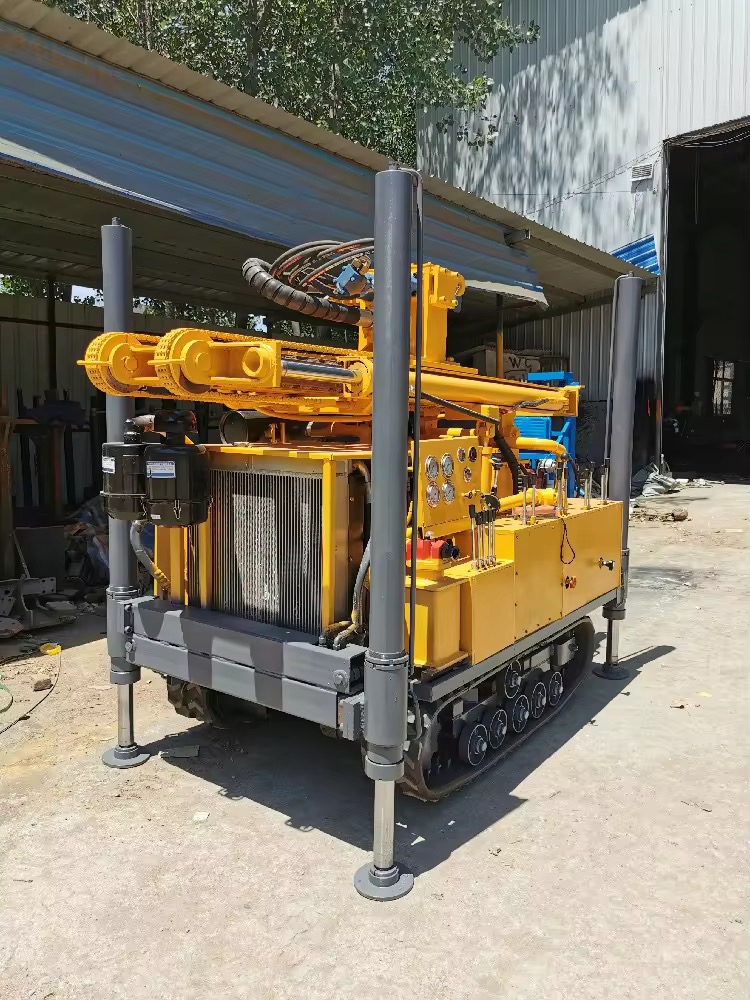

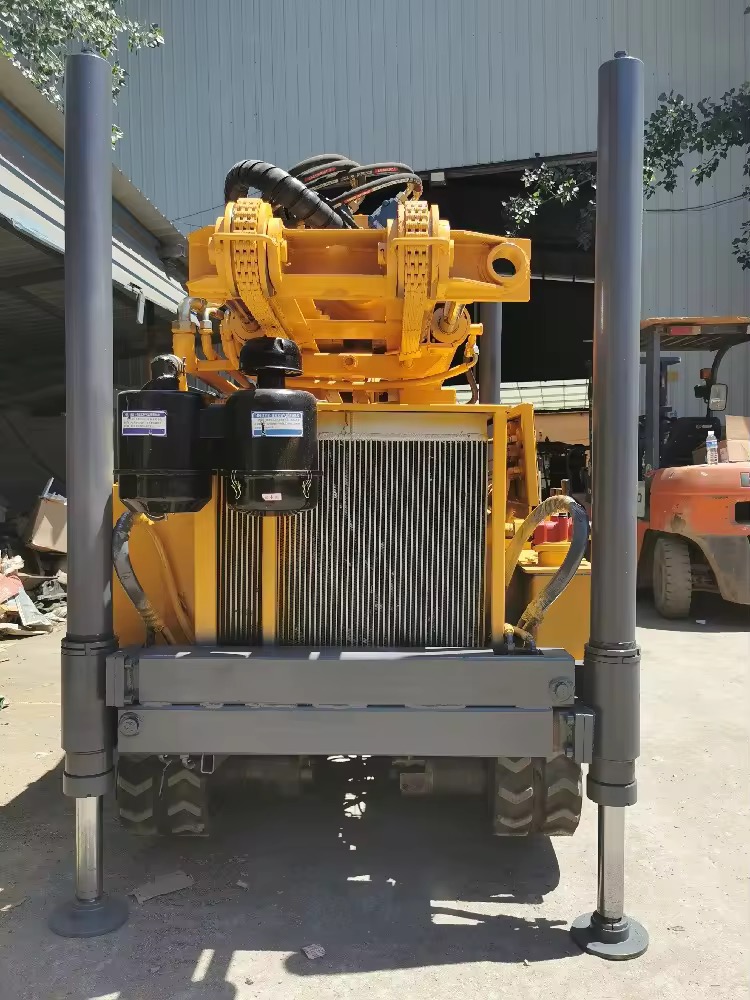

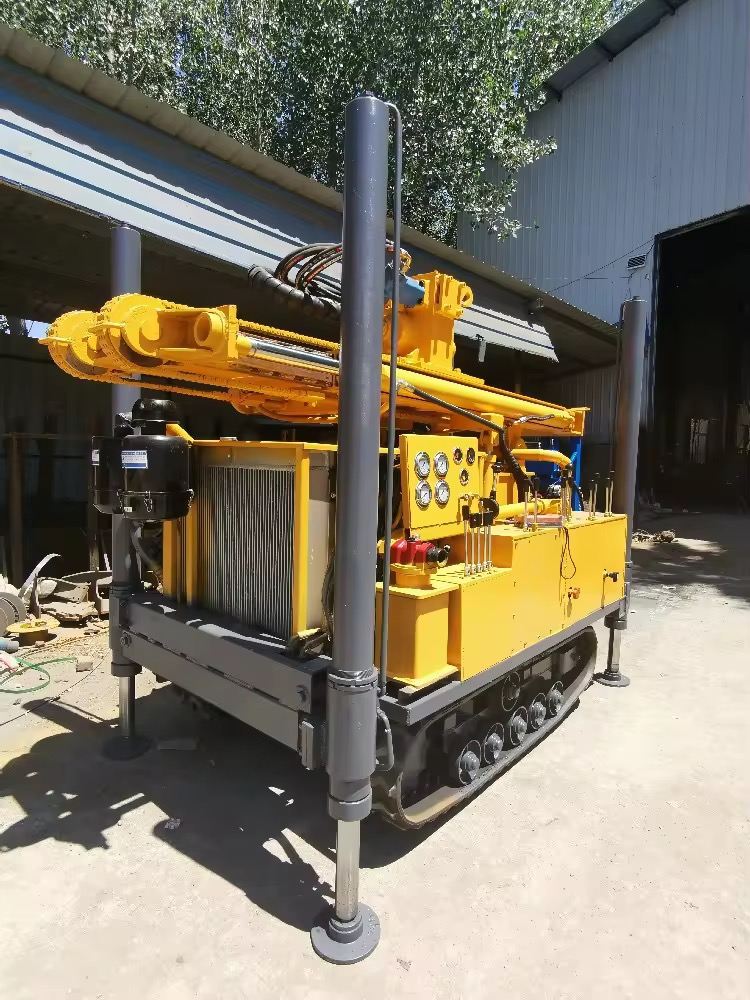

WELL DRILLING RIG

Well Drilling Rig: An Overview

A well drilling rig is a complex assembly of equipment designed to bore holes into the earth’s subsurface for various purposes, including water extraction, oil and gas exploration, geothermal energy, or environmental monitoring. Below is a structured breakdown of its key aspects:

1. Components of a Drilling Rig

• Derrick/Mast: A tall structure supporting drilling equipment and hoisting the drill string.

• Drill String: Series of connected pipes transmitting rotational force to the drill bit.

• Drill Bit: Attached to the drill string, it crushes or cuts through subsurface formations.

• Rotary System: Rotates the drill bit (e.g., rotary table or top drive).

• Hoisting System: Winches and cables for lifting/lowering the drill string.

• Mud Circulation System: Pumps drilling fluid (“mud”) to cool the bit, remove cuttings, and stabilize the wellbore.

• Blowout Preventer (BOP): Critical safety device in oil/gas drilling to control pressure surges.

2. Types of Rigs

• By Purpose:

  • Water Wells: Smaller, truck-mounted rigs for shallow depths.

  • Oil/Gas Rigs: Larger, more powerful, often with advanced pressure control systems.

  • Geothermal Rigs: Designed for high-temperature environments.

  • Environmental/Monitoring Wells: Portable rigs for sampling or remediation.

• By Location:

  • Onshore: Includes portable truck rigs or heavy land-based rigs.

  • Offshore: Platforms, drillships, or jack-up rigs used in oceans.

3. Drilling Methods

• Rotary Drilling: Most common; uses a rotating bit with circulating fluid.

• Percussion/Cable Tool: Traditional method using a repeatedly dropped heavy bit.

• Auger Drilling: Screw-like drill for soft soils.

• Directional Drilling: Allows angled or horizontal wells for resource access or minimal surface disruption.

4. Applications

• Resource Extraction: Water, oil, natural gas.

• Geothermal Systems: Installing ground-source heat pumps.

• Environmental: Monitoring groundwater or installing remediation wells.

• Geotechnical Investigations: Soil sampling for construction projects.

5. Drilling Process

1. Site Preparation: Clearing land, securing permits.

2. Drilling: Rotating/driving the bit while circulating fluid.

3. Casing Installation: Steel/plastic lining to prevent collapse and contamination.

4. Cementing: Sealing the casing to isolate formations.

5. Completion: Installing pumps (water wells) or production equipment (oil/gas).

6. Decommissioning: Plugging abandoned wells to protect groundwater.

6. Environmental & Safety Considerations

• Contamination Prevention: Proper casing and mud disposal to protect aquifers.

• Regulations: Compliance with local laws on well construction and fluid management.

• Safety Protocols: Pressure control (BOPs), crew training, and emergency plans.

7. Challenges

• Geological Uncertainty: Unanticipated rock formations or fluids.

• Depth/Terrain: Deeper wells require robust equipment; remote sites need portable rigs.

• Cost Factors: Depth, terrain, and regulatory hurdles influence expenses.
